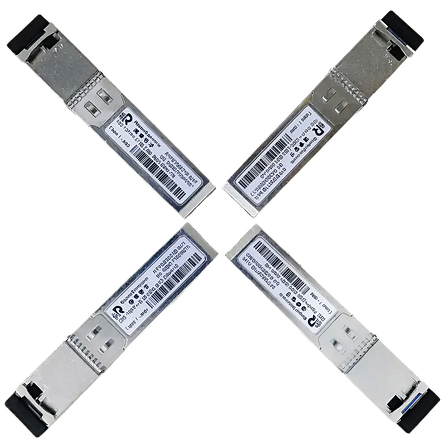

10G/25G SFP28 Narrow Band Tunable
Overview
NovelBeam 10G/25G SFP28 narrow band tunable series transceivers are designed for 5G front haul application , with the low cost and high quality performance .
The transceiver is incorporated with a narrow band tunable laser (with 6/12 channels tuning range ) and APD-TIA receiver, which is suitable for the high link budge networks. The 10G SFP+ tunable products can be up to 20km reach , the 25G SFP28 tunable products can be up to 10km reach without dispersion compensation in fiber .
The Operation Administration and Maintenance (OAM) function, which is meet G.698.4(G.metro) standard ,can be implemented to the transceivers and very helpful for managing the remote units. There are LC bi-directional and LC duplexer receptacle types available .
FEATURES
-
C-band 6 / 12 Channels Tunable with 100GHz Spacing
-
With / Without G.698.4 OAM Function
-
Support 25GE and eCPRI with CDR
-
Support 10GE and CPRI
-
C-band cooled Tunable EML
-
APD Receiver with Limiting Amplifier
-
Support 10km / 20km Over G.652 SMF
-
Positive Power Supply Lines: 3.3V
-
Power Consumption<2.6W
-
LVTTL Monitor and Control Interfaces
-
ROHS 2.0 Compliance
25G SFP28 LWDM / MWDM / BIDI
Overview
NovelBeam 25G SFP28 MWDM/LWDM/BIDI series transceivers are designed for 5G front haul application , with the low cost and high quality performance .
The MWDM series transceivers are incorporated with 12 channels MWDM cooled DFB lasers and PIN-TIA receiver, the APD-TIA receiver is available as well ,in case of the high link budge networks application; The LWDM series transceivers are incorporated with 12 channels LWDM cooled DFB lasers and PIN-TIA receiver, there are two versions of 10km and 15km applications; The BIDI series transceivers are incorporated with CWDM uncooled DFB lasers and PIN-TIA receiver, with 1271/1331nm and 1271/1311nm two versions .
The Operation Administration and Maintenance (OAM) function can be implemented to the MWDM/LWDM series transceivers and very helpful for managing the remote units .
FEATURES
-
12 Channels MWDM / LWDM
-
With / Without OAM Function In MWDM / LWDM
-
Support 25GE and eCPRI with CDR
-
Support 10GE and CPRI
-
Cooled / Uncooled DFB
-
PIN / APD Receiver with Limiting Amplifier
-
Support 10km / 15km Over G.652 SMF
-
Positive Power Supply Lines: 3.3V
-
Power Consumption<1.8W
-
LVTTL Monitor and Control Interfaces
-
ROHS 2.0 Compliance
10G SFP+ Tunable/DWDM/TDM Series
Overview
NovelBeam 10G SFP+ fully tunable series transceivers are designed for Telecom applications, with low cost and high-quality performance. They are incorporated with a fully tunable laser (with 48/96 channels tuning range) and a PIN-TIA receiver for ER applications. The APD-TIA receiver is also available for ZR applications.
The 10G SFP+ ER/ER+ tunable series transceivers are incorporated with 4 groups of narrow-band tunable lasers. Each group can cover 10 channels (with 100 GHz spacing) in the C-band. With high yield and good performance, they are helpful for cost saving. These series transceivers are designed for 40 km to 60 km applications with a PIN-TIA receiver, and for 80 km applications with an APD-TIA receiver.
The 10G SFP+ DWDM/TDM series transceivers are incorporated with uncooled DFB lasers and cooled EML lasers, which can transmit from 10 km to 80 km, and even up to 100 km.
FEATURES
-
C-band 96-channel tunable with 50 GHz spacing
-
C-band 48-channel tunable with 100 GHz spacing
-
C-band 4 × 10-channel tunable with 100 GHz spacing
-
Supports 10GE LR/ER/ZR
-
Cooled tunable EML and uncooled DFB lasers
-
Dual LC receptacle connector
-
Positive power supply voltage: 3.3 V
-
Power consumption < 1.8 W
-
LVTTL monitor and control interfaces
-
RoHS 2.0 compliant
